IoT Hardware & Flutter

InkLink

E-Paper Desk Display & Companion App

InkLink is a custom IoT desk display built using an ESP8266 microcontroller and a Waveshare 3.97" E-Paper display (800×480 resolution). It pairs with a Flutter mobile companion app that processes photos on-device with custom dithering isolates and streams them to the screen over local Wi-Fi.

Waveshare 3.97" (800×480)ESP8266 (NodeMCU v3)Flutter 3 & RiverpodDio SSE StreamingZero Cloud Dependencies

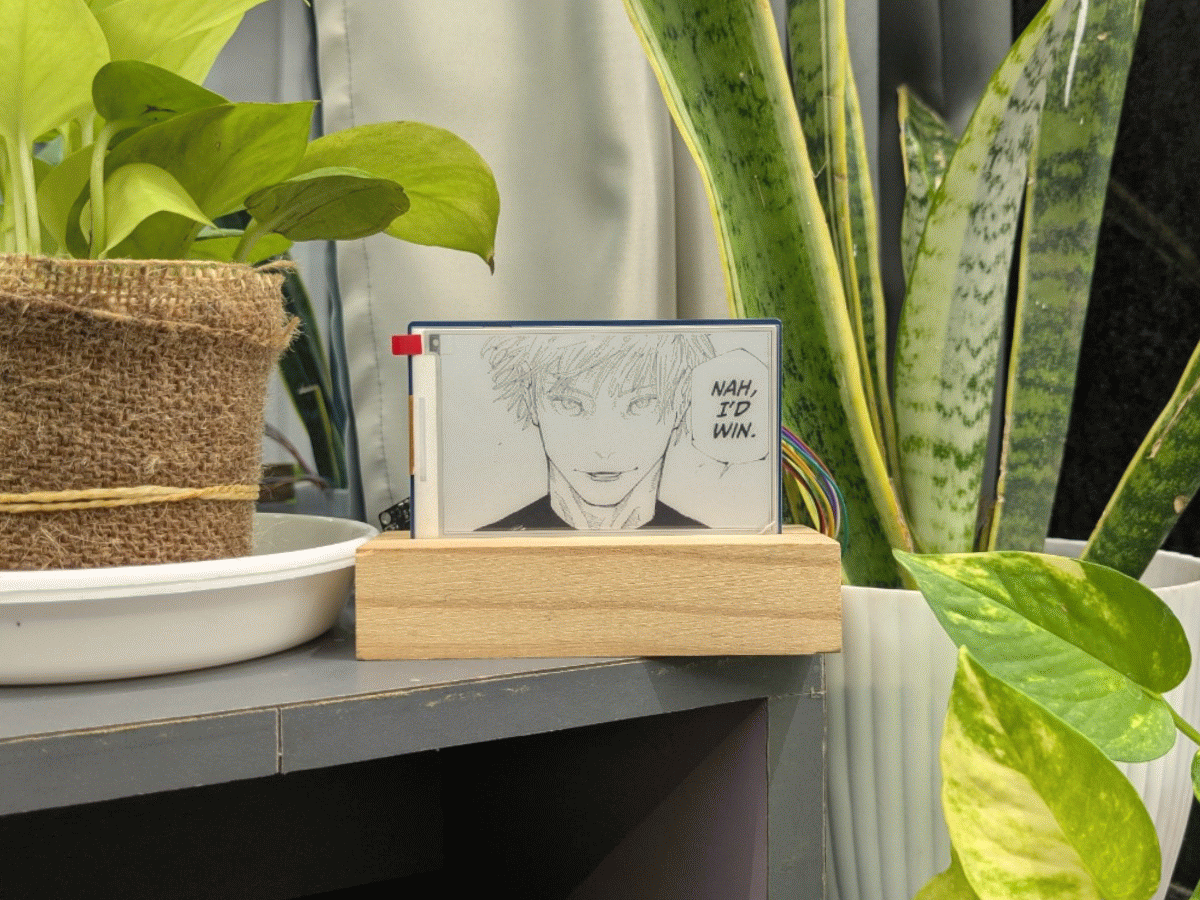

Live Hardware & App Demo

800×480 E-PaperESP8266 SoftAPDio SSE Streaming

Technical Stack

Architecture spanning client-side Flutter isolates and low-level C++ embedded firmware.

phone_iphone

Mobile Companion

Flutter & Dart

✦
State Management: Riverpod 2.x with code generation and reactive lifecycle providers.
✦
Networking (Dio Exclusively): Binary multipart uploads, long-lived SSE stream reader (ResponseType.stream), and SoftAP credential submission.
✦
Discovery & Provisioning: wifi_scan and wifi_iot (WifiNetworkSpecifier P2P routing); zero-config local resolution via multicast_dns.
✦
Image Processing: Isolate-based background worker pipeline using Flutter's compute() and the Dart image package.

memory

Firmware

C++ & Arduino

✦
Hardware: ESP8266 (NodeMCU v3) running on 80/160MHz clock.
✦
Display Driver: GxEPD2 driving a Waveshare 3.97" E-Paper panel over SPI with paged buffer rendering.
✦
Storage & Persistence: LittleFS for flash binary caching (/display.bin) + EEPROM for Wi-Fi credentials.
✦
Web Server: Embedded ESP8266WebServer managing REST endpoints and real-time Server-Sent Events.

On-Device Image Processing Modes

Real-time algorithmic conversion running in background Dart isolates.

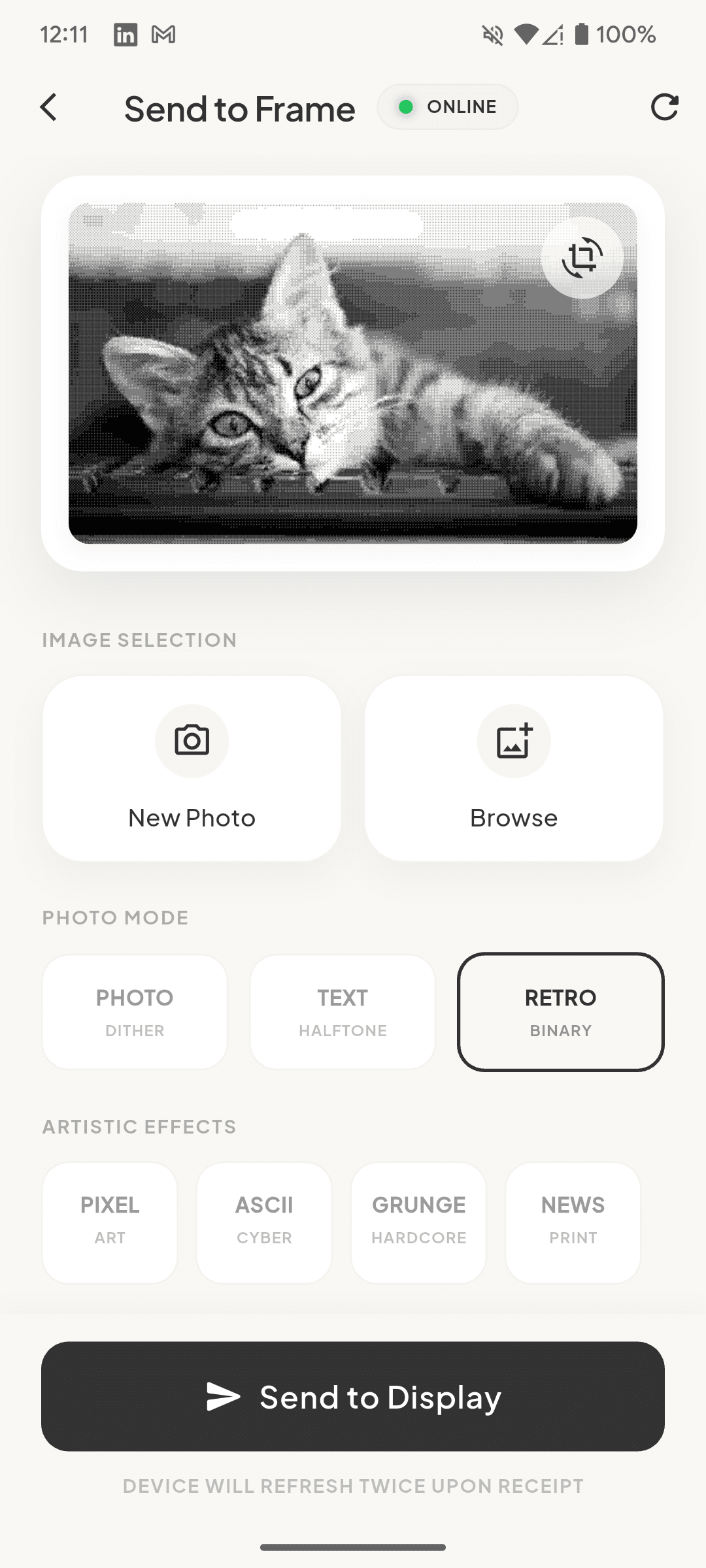

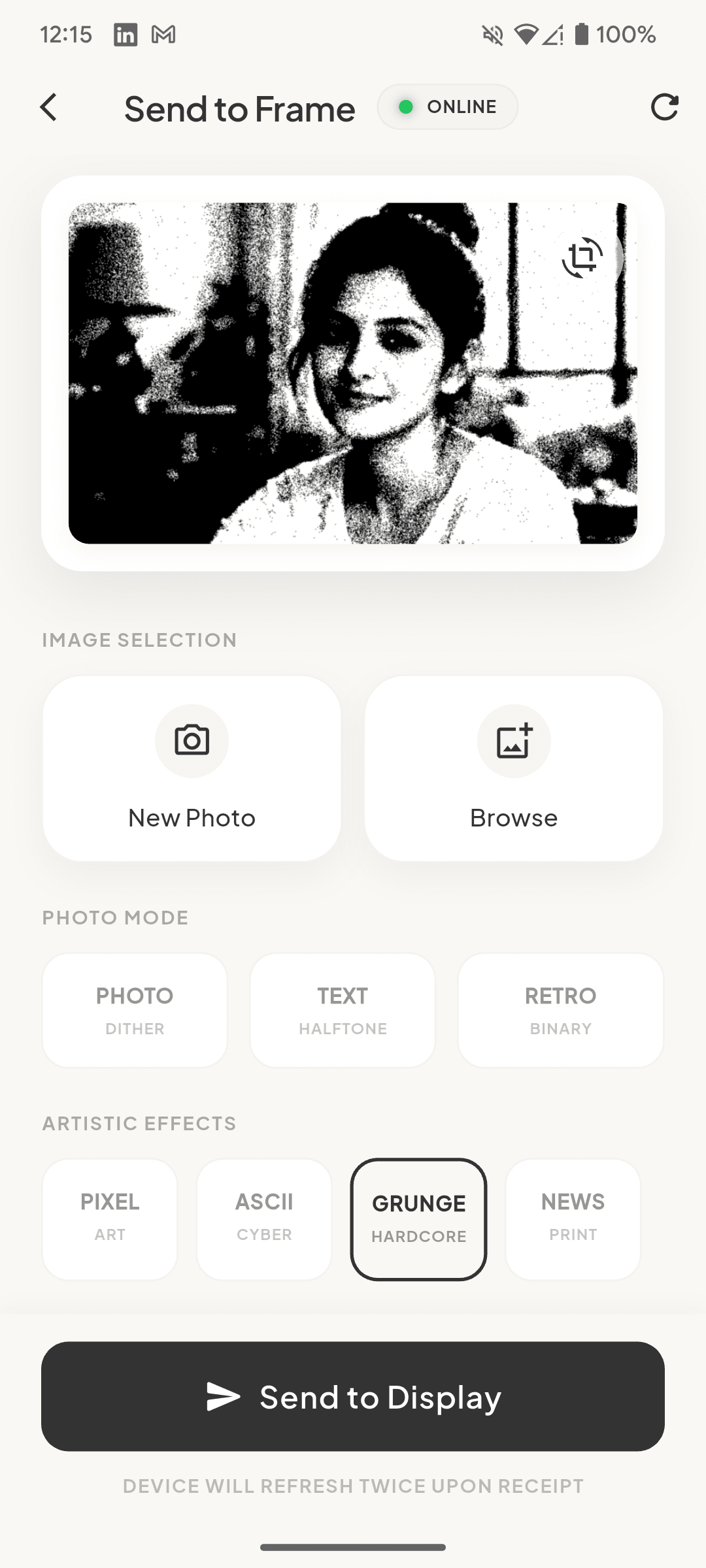

Flutter Isolate UI

Standard ModeFloyd-Steinberg / Atkinson

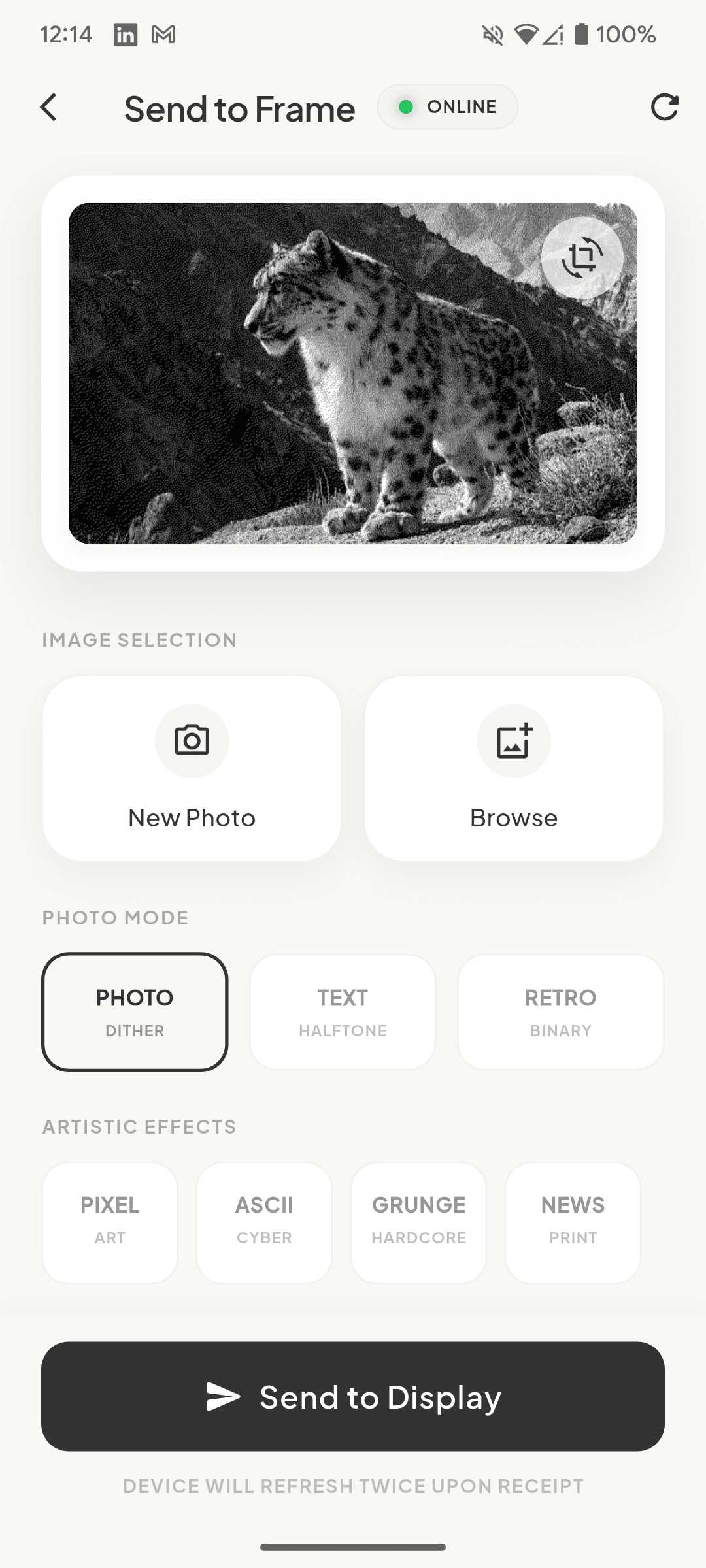

Photo Dither

Spatial error diffusion mapping 256 grayscale levels into natural continuous-tone 1-bit gradients — ideal for complex wildlife, portraits, and landscape photos.

✦

Isolate Pipeline: Runs inside Flutter's compute() worker to keep 60fps UI buttery smooth during heavy bitmap conversions.

✦

1-Bit Byte Packing: Compresses the 800×480 screen buffer (384,000 pixels) down to exactly 48,000 bytes (8 pixels per byte) for fast, low-overhead wireless transfer.

✦

Real-Time Mobile Preview: Interactive on-screen visual preview with zoom & crop adjustments before firing the payload to ESP8266 LittleFS.

Click thumbnail to preview mode

System Architecture & Protocol

Sequence Flow

The system operates across three phases: local access point provisioning, zero-config mDNS discovery, and a two-stage image transfer protocol with real-time SSE telemetry.

Rendering sequence diagram...

Core Engineering Deep Dives

Low-level implementation details, protocol mechanics, and resource optimization techniques.

SoftAP Provisioning & P2P Socket Routing

Direct hardware socket onboarding bypassing Android captive portal and mobile data routing conflicts.

✦If no saved credentials are found in EEPROM on boot, the ESP8266 hosts an open Access Point (InkLink_XXXXXX) on 192.168.4.1:8080.
✦The Flutter companion app discovers the AP, programmatically connects using wifi_iot (WifiNetworkSpecifier P2P API on Android 10+), and triggers WiFiForIoTPlugin.forceWifiUsage(true) to route HTTP sockets directly through the SoftAP.
✦The app transmits the target home network SSID and password via POST /wifi.
✦Firmware writes credentials to EEPROM, safely tears down the SoftAP server asynchronously to prevent heap corruption, and connects to the home router.
✦The app restores normal OS routing by calling forceWifiUsage(false).

Client-Side Image Processing Isolate

Offloading Floyd-Steinberg error diffusion and 1-bit binary compression to a dedicated background worker isolate.

✦Resizing & Center Cropping: Scales and crops arbitrary photos to the exact 800×480 screen aspect ratio.
✦Grayscale & Dithering: Converts RGB channels to luminance, then executes spatial error diffusion (Floyd-Steinberg / Atkinson) to map 256 grayscale levels into 1-bit black and white.
✦Bit Packing (8 Pixels / Byte): Packs 8 binary pixels into each byte (MSB first). This compresses the 384KB frame payload down to exactly 48,000 bytes, enabling sub-second wireless transmission.

Two-Stage Upload & Server-Sent Events (SSE) via Pure Dio

Preventing HTTP timeouts during 6-10s e-paper refresh cycles using streaming multipart and real-time SSE progress.

✦Stage 1 (Upload): The app POSTs the 48KB binary payload using Dio FormData with onSendProgress mapped to 0%–40% progress bar UI. The ESP8266 streams incoming chunks directly to LittleFS (/display.bin) and returns a unique upload_id.
✦Stage 2 (SSE Telemetry): The app opens an unbuffered GET stream (Dio ResponseType.stream) to GET /status-stream?upload_id=X. As the firmware reads the binary file line-by-line and pushes to GxEPD2 over SPI, it emits real-time text/event-stream events, driving progress from 40% to 100%.

Memory Management & SPI/WiFi Coexistence

Operating reliably within ~35–45KB of free heap without triggering ESP8266 watchdog timeouts.

✦Paged Display Buffer: GxEPD2 is initialized with a 32-row page buffer (3,200 bytes) instead of allocating a full 48KB monolithic framebuffer in RAM.
✦Line-by-Line File Streaming: The ImageRenderer streams 100-byte row chunks from LittleFS into a single recycled heap buffer, drastically curbing memory footprint.
✦Task Yielding: The rendering draw loop invokes yield() on every row, keeping the ESP8266 TCP/IP background stack alive and preventing Wi-Fi disconnections during active screen updates.
